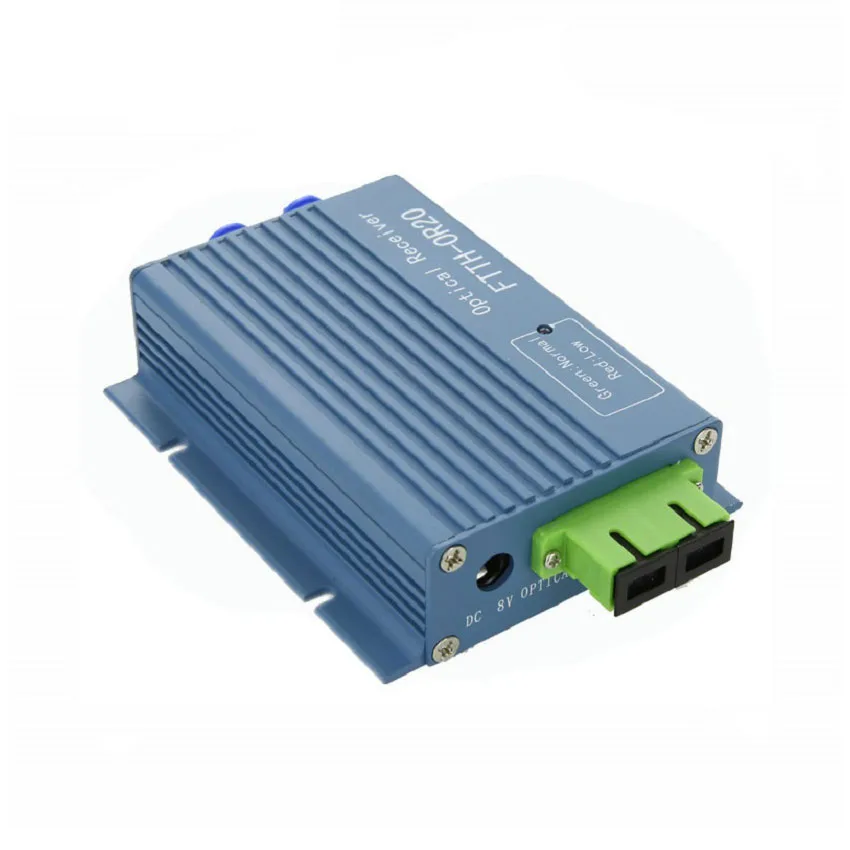

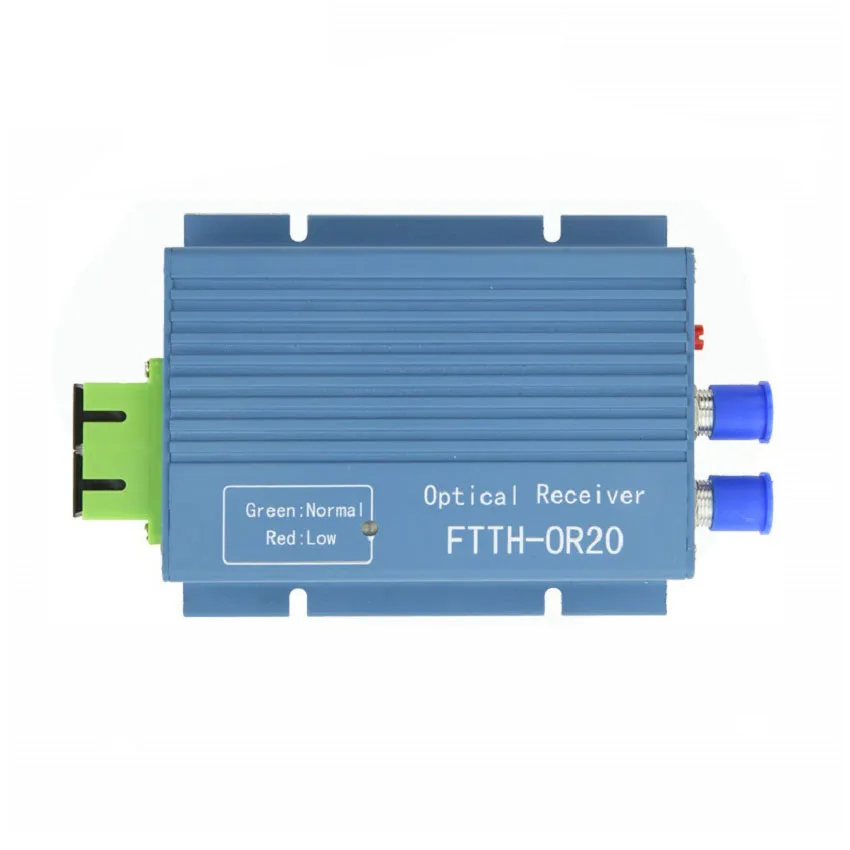

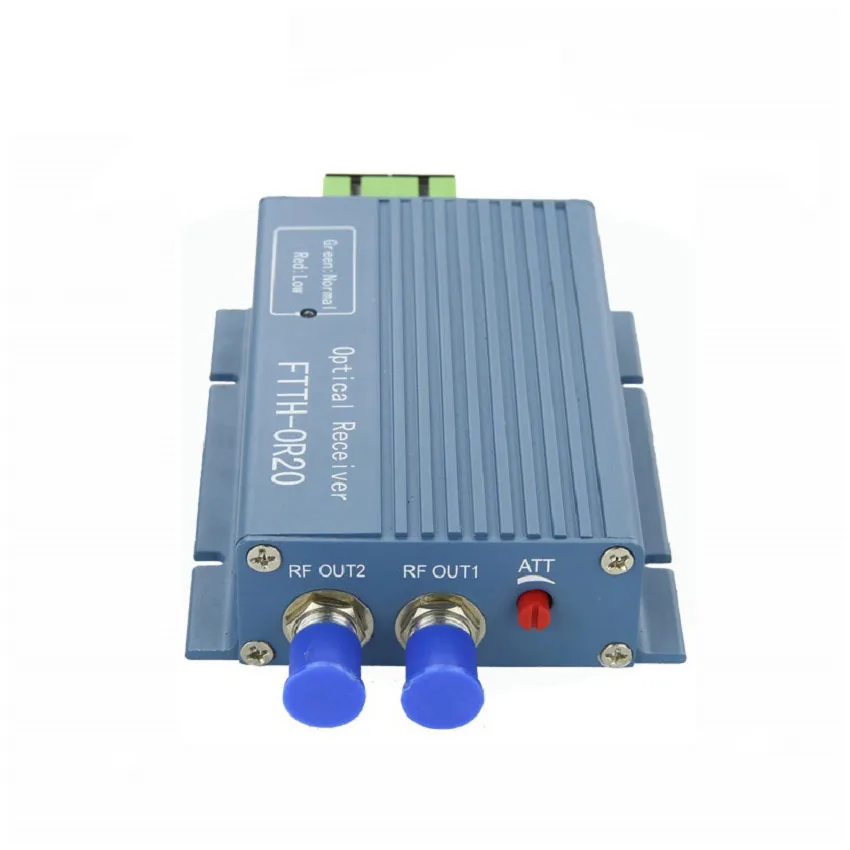

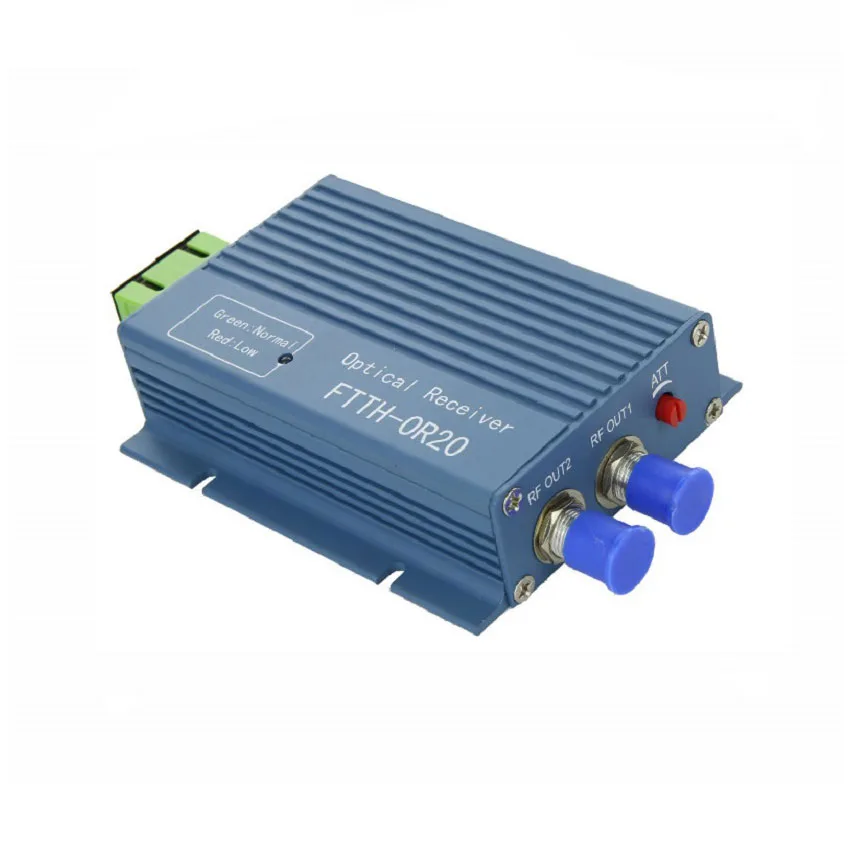

Aluminum AGC WDM Optical Isolator Optical Receiver

● High-quality aluminum profile shell with good heat dissipation.
● RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal satisfies -10dBm reception.
● With light input AGC function (AGC range can be customized);
● Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is less than 1W, with a light detection circuit.
● Can be built-in WDM, single-fiber home (1490/1310/1550nm) triple-network convergence applications.
● Built-in optical isolator, input to achieve 1490/1310nm isolation.
● Multi-stage lightning protection devices (TVS TVS diodes) and lightning protection systems ensure the safe operation of the equipment.
● The output gain is manually adjustable (0~18dB) and the output level is > 80dBuV.
● SC/APC or FC/APC or custom optical connectors, male or female RF interfaces.
● Output power supply can be achieved.
● Single or dual output can be achieved.
