Description

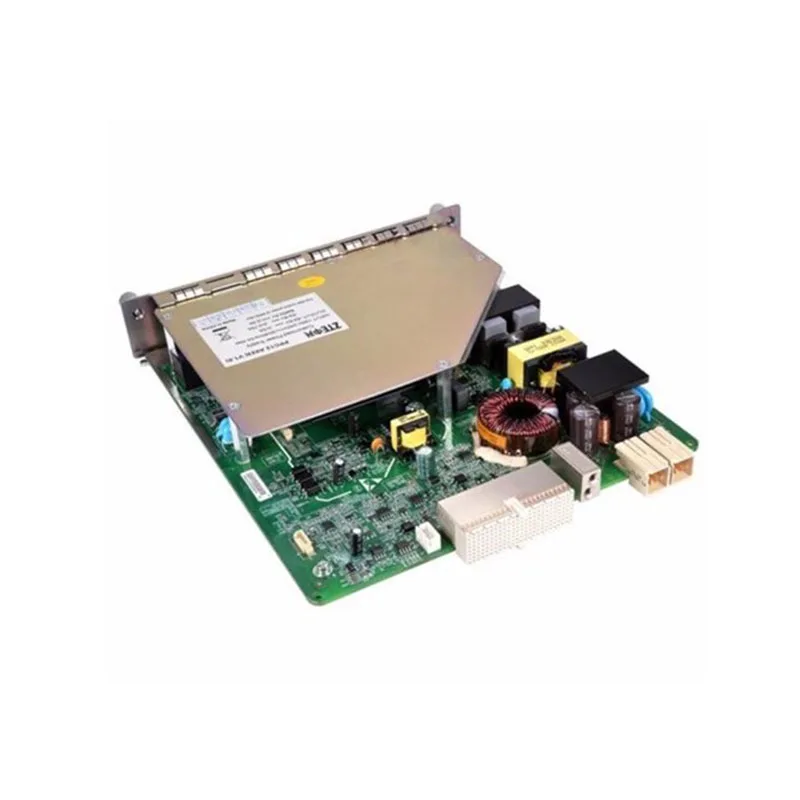

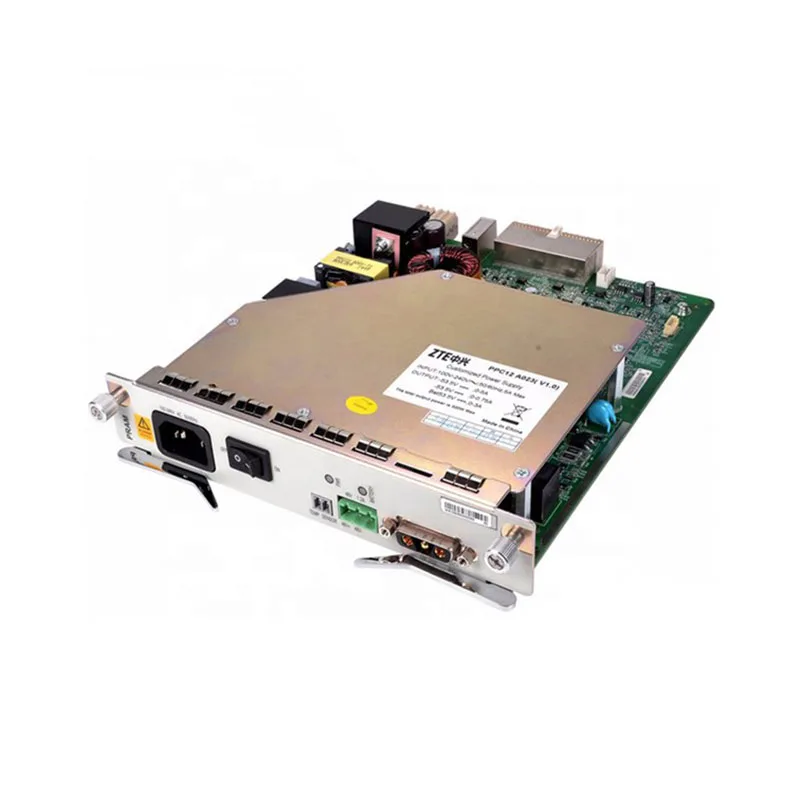

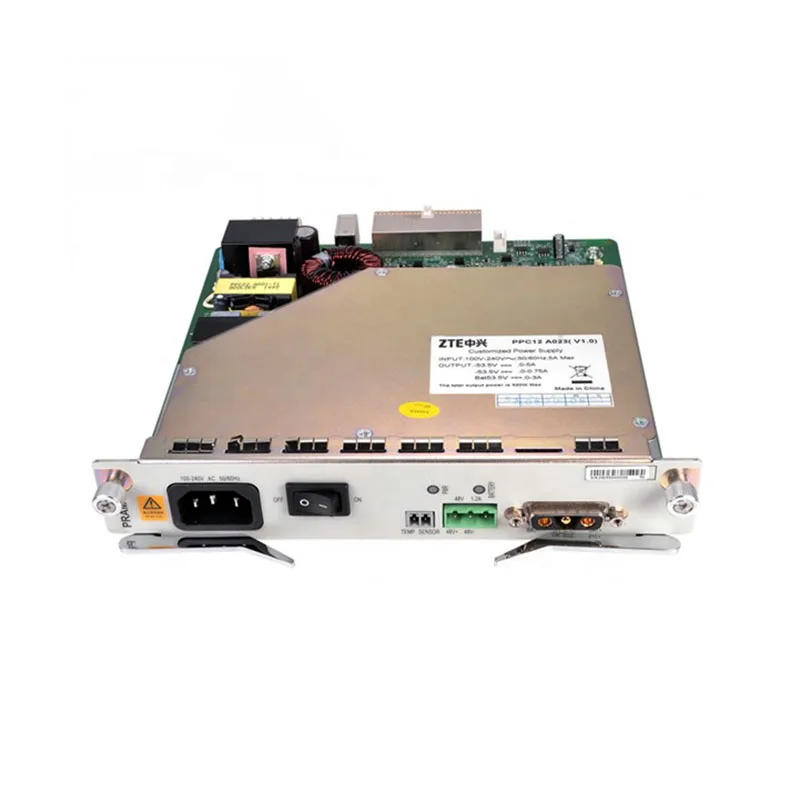

What is the C320 PRAM Power Module?
The C320 PRAM power module serves as the essential power supply for the modular C320 OLT. It efficiently converts a 220V power supply into the necessary 48V, ensuring optimal function for the ZXA10 C320 chassis.
Key Features of the C320 PRAM Power Module
With its hot-swap functionality, the C320 PRAM can seamlessly operate without downtime, providing full power to the C320 chassis and all installed boards. This power module is optimized for use in compact optical platforms, facilitating robust network connectivity.
Compatibility and Efficiency
The ZXA10 C320 is designed for small capacity systems, supporting XPON access while consuming less than 200W of power. With the ability to connect up to 4096 ONT/ONU devices, this power module is a vital component for scalable networking solutions.
| Model | C320 |
| Backplane capacity | 420 Gbit/s |
| Switching capacity | 84 Gbit/s |
| service cards | 2 (GPON/P2P/XG-PON1) |
| combined control cards | 2 |
| power supply cards | 1 |
| uplink cards | 1 (10GE/GE/FE/E1/T1) |
| Max GPON subscribers | 4096 |
| Management Interfaces | CLI, SSH, SNMP, telnet |
| Dimensions | 2U (86,1 x 482,6 x 270 mm) |
| Power | -48 V (DC), 230V (AC) |
| Working temperature and humidity | -25°C – +55°C, 5% – 95% |
| Control, uplink & power supply cards | SMXA/1 – 3 x GE uplink interface (1x RJ45, 2x SFP), power input -48 V DC, switching power 84 Gbit/s |
| SMXA/3 – 1 x 10GE 2 x GE uplink interface (2x SFP, 1x RJ45), power input -48 V DC, switching power 84 Gbit/s | |
| Power supply cards | PRAM – Power input 230V AC, the port for backup batteries, power DC output |
| GPON Cards | GTGO – 8 GPON ports, split ratio up to 1:128 |
| GTGH – 16 GPON ports, split ratio up to 1:128 | |
| FTGK – 48 P2P ports (WDM) or 24 GE ports (separated fibres for uplink/downlink) |
