Overview of the CSHF Board

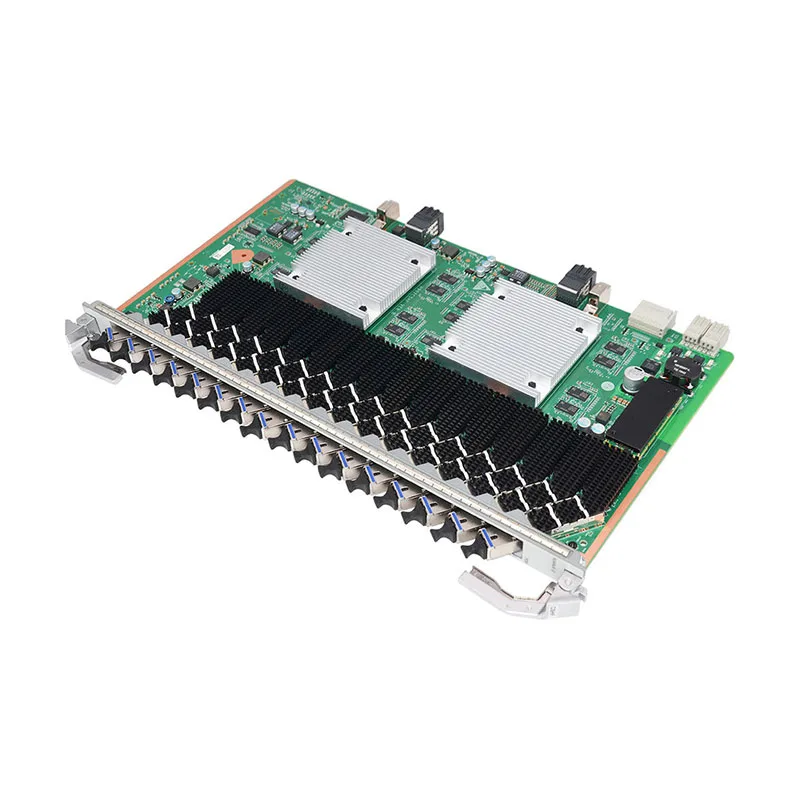

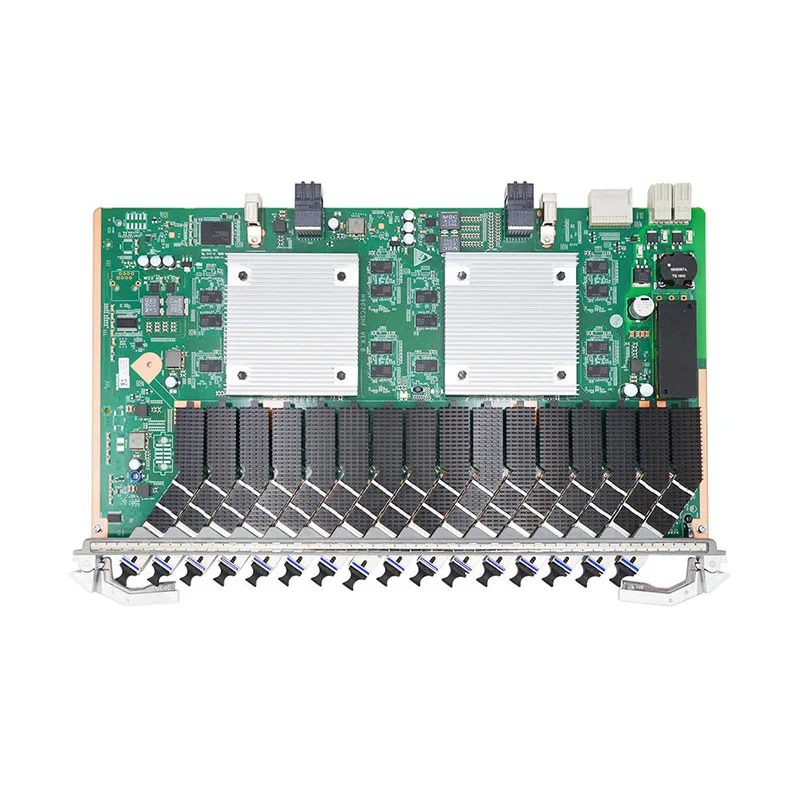

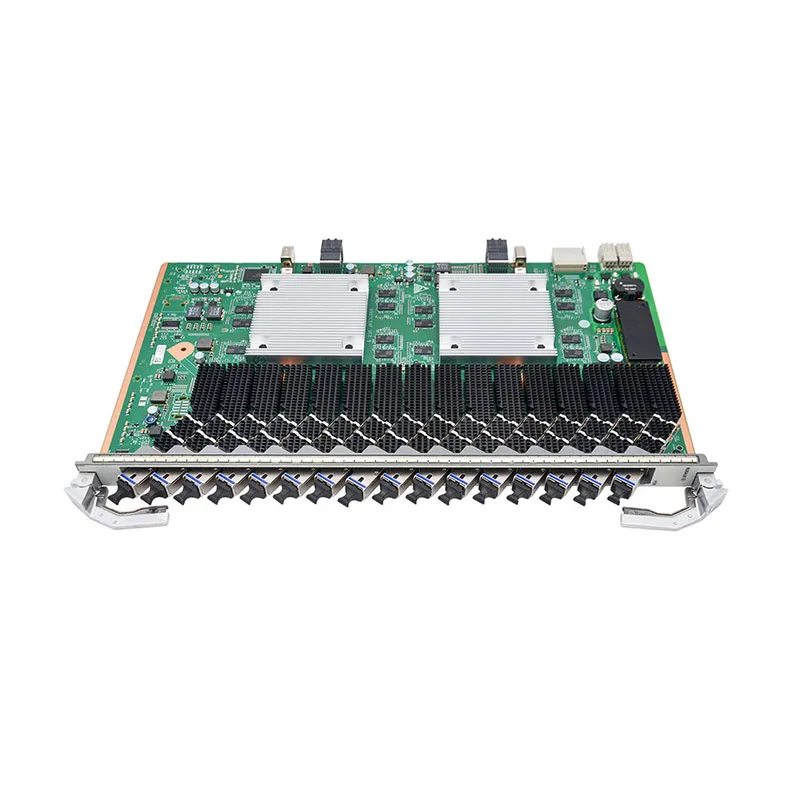

The CSHF board is a state-of-the-art 16-port XGS-PON and GPON combo OLT interface board designed for the SmartAX MA5800 series, including popular models like MA5800-X17, MA5800-X15, MA5800-X7, and MA5800-X2. This innovative technology facilitates efficient access solutions for modern networks.
Seamless Integration with ONU
Working in tandem with Optical Network Units (ONU), the CSHF board enables XG(S)-PON and GPON access services. This synergy ensures robust performance, which is essential for varied user demands.
Benefits of the H901CSHF Board
With its advanced features, the H901CSHF board supports scalable network growth while maintaining high-speed connectivity. Ideal for both service providers and enterprises, it offers a trustworthy solution to meet today’s digital challenges.
| Model | CSHF |
| Port | 16 |
| Type | C+ Module: One-fiber bidirectional optical module, class C+ |
| B+ Module: One-fiber bidirectional optical module, class B+ | |
| Operating Wavelength | C+/B+ Module: |
| GPON channel: | |
| Tx: 1490 nm | |
| Rx: 1310 nm | |
| XGS-PON channel: | |
| Tx: 1577 nm | |
| Rx: 1270 nm | |
| Encapsulation Type | SFP+ |
| Port Rate | C+/B+ Module: |
| GPON channel: | |
| Tx: 2.488 Gbit/s | |
| Rx: 1.244 Gbit/s | |
| XGS-PON channel: | |
| Tx: 9.953 Gbit/s | |
| Rx: 9.953/2.488 Gbit/s | |
| Minimun Output Optical Power | C+ Module: |
| GPON channel: 3 dBm | |
| XGS-PON channel: 5 dBm | |
| B+ Module: | |
| GPON channel: 1.5 dBm | |
| XGS-PON channel: 1 dBm | |
| Maximum Output Optical Power | C+ Module: |
| GPON channel: 7 dBm | |
| XGS-PON channel: 8 dBm | |
| B+ Module: | |
| GPON channel: 5 dBm | |
| XGS-PON channel: 4 dBm | |
| Maximum Receiver Sensitivity | C+ Module: |
| GPON channel: -32 dBm | |
| XG-PON channel: -30.5 dBm | |
| XGS-PON channel: -29 dBm | |
| B+ Module: | |
| GPON channel: -28 dBm | |
| XG-PON channel: -26.5 dBm | |
| XGS-PON channel: -25 dBm | |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | C+ Module: |
| GPON channel: -12 dBm | |
| XG-PON channel: -10 dBm | |
| XGS-PON channel: -8 dBm | |
| B+ Module: | |
| GPON channel: -8 dBm | |
| XG-PON channel: -6 dBm | |
| XGS-PON channel: -4 dBm | |
| Extinction Ratio | 8.2 dB |
| Dimensions (W x D x H) | 23.3 mm x 257.90 mm x 399.20 mm |
| Power Consumption | Static: 51 W |
| Maximum: 99 W | |
| Operating temperature | -40°C to +55°C |
