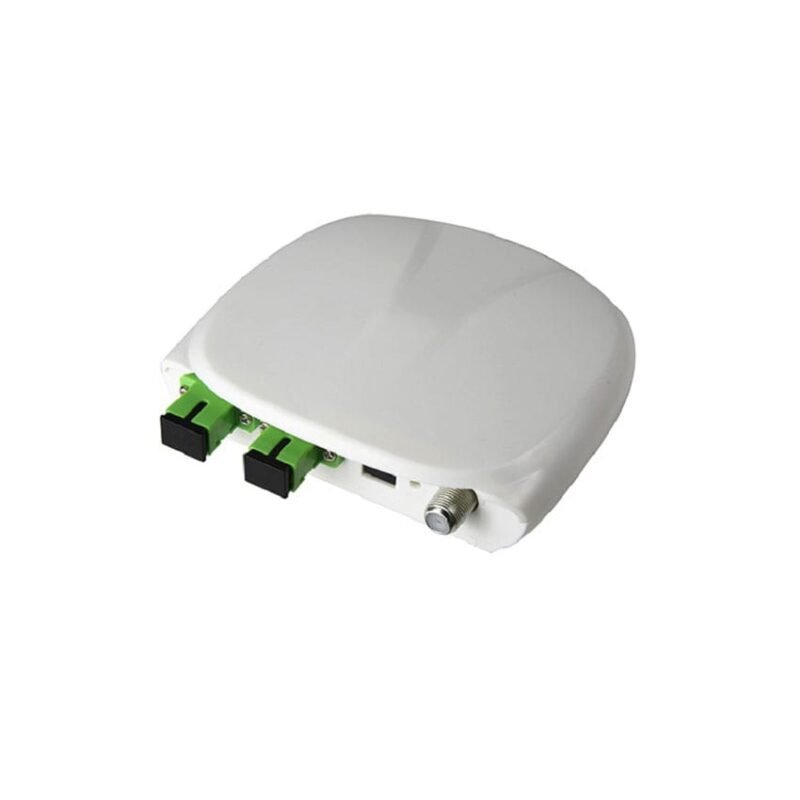

FTTH 1490 1310 1550nm WDM Optical Receiver

● RF channel full GaAs low noise amplifier circuit. The digital signal satisfies -18dBm reception and the analog signal satisfies -10dBm reception.
● With light input AGC function (AGC range can be customized).
● Anti-frequency surge protection device, GaAs amplification chip.
● Low-power design, high-efficiency switching power supply ensures high reliability and high stability of the power supply. The overall power consumption is less than 2W, with optical detection circuit.
● Built-in WDM to realize single-fiber home (1490/1310/1550nm) tri-network convergence application.
● FC/APC or SC/APCTM or FC/PC or SC/PC, metric or imperial RF interface (customizable according to customer requirements).
● Multi-stage lightning protection devices (TVS transient suppression diodes) and lightning protection systems ensure the safe operation of the equipment.
● Output power supply can be achieved.

Categories: ,

The FTTH optical receiver is a home optical receiver with optical fiber access as its ultimate goal. It is suitable for FTTH (Fiber to the Home) network optical fiber subscriber access terminals, enabling analog or digital signals to enter the home. It is a home-made equipment that is tailored to realize triple play.

Equipped with advanced signal processing technology, the FTTH optical receiver is capable of receiving optical signals from the fiber network, ensuring that you receive crystal-clear video quality without any interruptions or distortions. The device is also highly compatible with a wide range of fiber optic networks, making it the ideal choice for both residential and commercial applications.

With its sleek and compact design, the FTTH optical receiver can be easily installed in any home or office setting, delivering high-quality multimedia content straight to your home.

Wavelength1200~1600nm&1550nmCNR≥51dB
Input optical power0dBm~-10dBm(Analog signal） CTB≥65dB
0dBm~-18dBm(Digital signal)CSO≥62dB
Light reflection loss>45 dBHost voltageDC5V
Optical connectorFC/APC, SC/APC,

FC/PC , SC/PC		Infeed voltageDC5V
Frequency Range47~1006MHzAdapter voltageAC90V~145V ,

AC145V~265V
In-band flatness±1dB@45~862MHzConsumption<2W
RF output reflection≥16dB@ 47~550MHz,
≥14dB@550~862MHz		Working TEMP-20℃ ~+45℃
Output level>78dBuV

(AGC:@-9~+0dBm,Pin=0dBm)		Package Size
RF output impedance75ΩGross weight1.78kgs（10pcs）
AGC range0~-9dBm
