Introduction

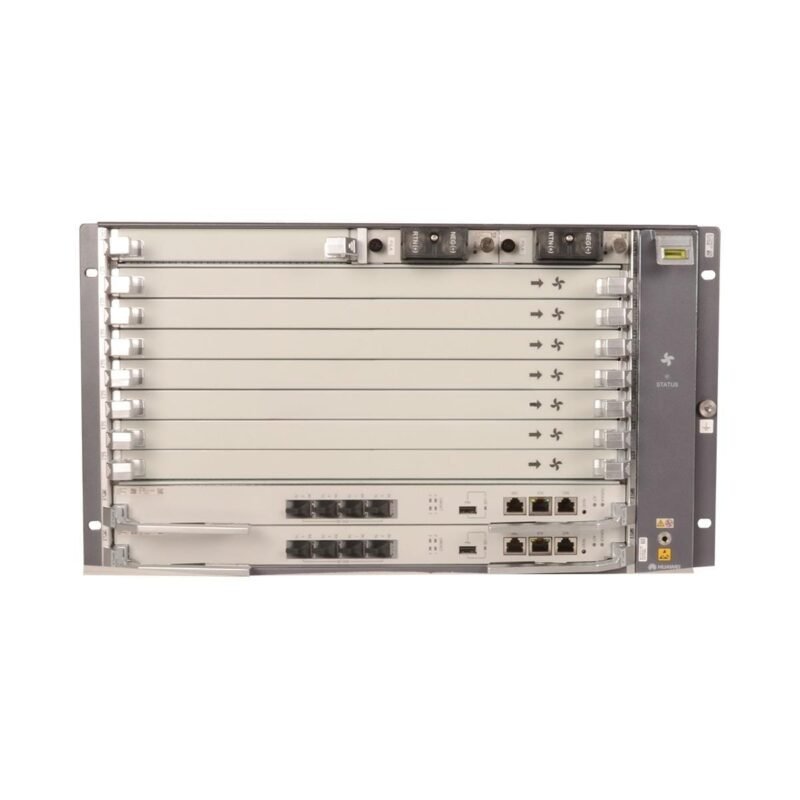

The MA5800 X7 OLT MPLB is a groundbreaking intelligent aggregation Optical Line Terminal (OLT) designed for Next-Generation Passive Optical Networks (NG-PON). It represents the forefront of OLT solutions, offering enhanced bandwidth, faster data transfer rates, and advanced connectivity. This product is ideal for service providers looking to establish high-performance networks that cater to diverse scenarios, including residential, business, and wireless internet access.
Key Features and Specifications
- High-Capacity Design :
- Service Slots : The chassis supports 7 service slots, each with a 200G throughput capacity.
- Total Capacity : The MA5800 X7 has a next-generation 40G capacity, smoothly evolving to 40G/100G PON.
- PON Technology Support :
- GPON : Supports standard GPON technology for high-speed data transmission.
- 10G PON : Compatible with XG-PON and XGS-PON, ensuring future-proof connectivity.
- Point-to-Point Interfaces : Supports 10GE/GE interfaces for various network deployments.
- Network Deployment Flexibility :
- FTTH (Fiber To The Home) : Ideal for residential connections.
- FTTD (Fiber To The Desk) : Suitable for office environments.
- FTTB (Fiber To The Building) : Perfect for multi-dwelling units.
- FTTC (Fiber To The Cabinet) : Ideal for street-level deployments.
Performance and Capabilities
The MA5800 X7 OLT MPLB is designed to provide high-performance connectivity for a wide range of applications. Its advanced architecture ensures stable and reliable data transmission, making it suitable for service providers looking to deploy high-quality networks. The device’s support for multiple PON technologies and network deployments makes it a versatile solution for various scenarios.
| Service board | |||
| GPHF | Provides 16 GPON ports for access services | ||
| GPSF | Provides 16 GPON ports for home access services | ||
| XGHD | Provides 8 asymmetric 10G GPON ports for access services. | ||
| TWED | Provides 8 symmetric 10G GPON ports for access services. | ||
| EDSH | 32-channel E1 upstream board, supporting native TDM mode. | ||
| OGHK | 48-port aggregated GE/FE optical interface board, supporting up to 48 channels of GE/FE | ||
| OXHD | 8-port aggregated 10GE optical interface board, supporting GE/10GE Ethernet aggregation. | ||
| Item | MA5800-X17 | MA5800-X15 | MA5800-X7 | MA5800-X2 |
| Rack type | 21inch | 19inch | ||
| Maximum weight(including mounting brackets) | 45kg | 35kg | 26kg | 9.4kg |
| Maximum input current | 60A | 40A | DC power supply: 20A AC power supply: 8 A | |
