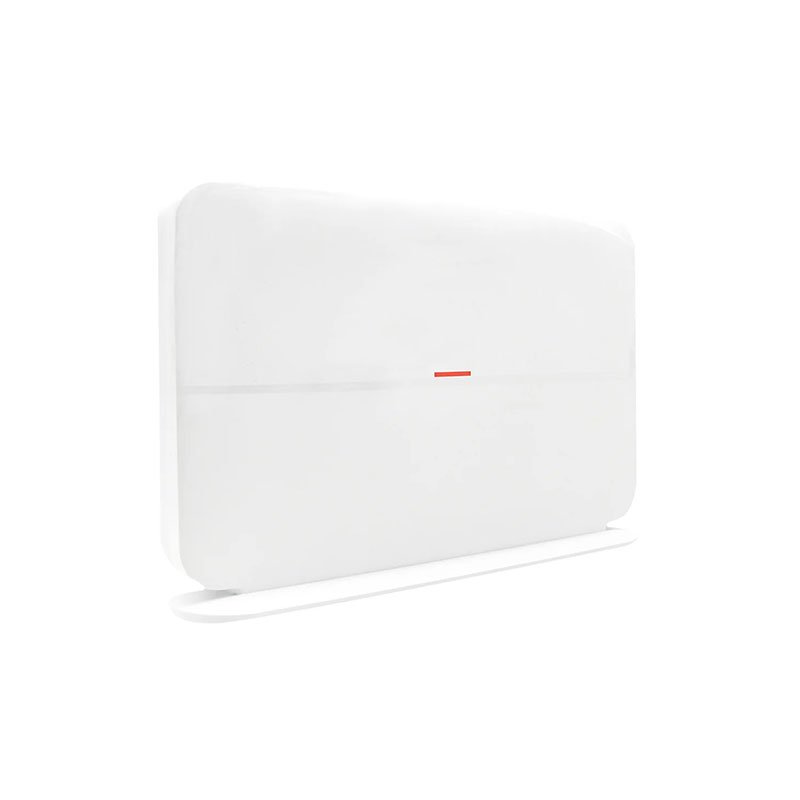

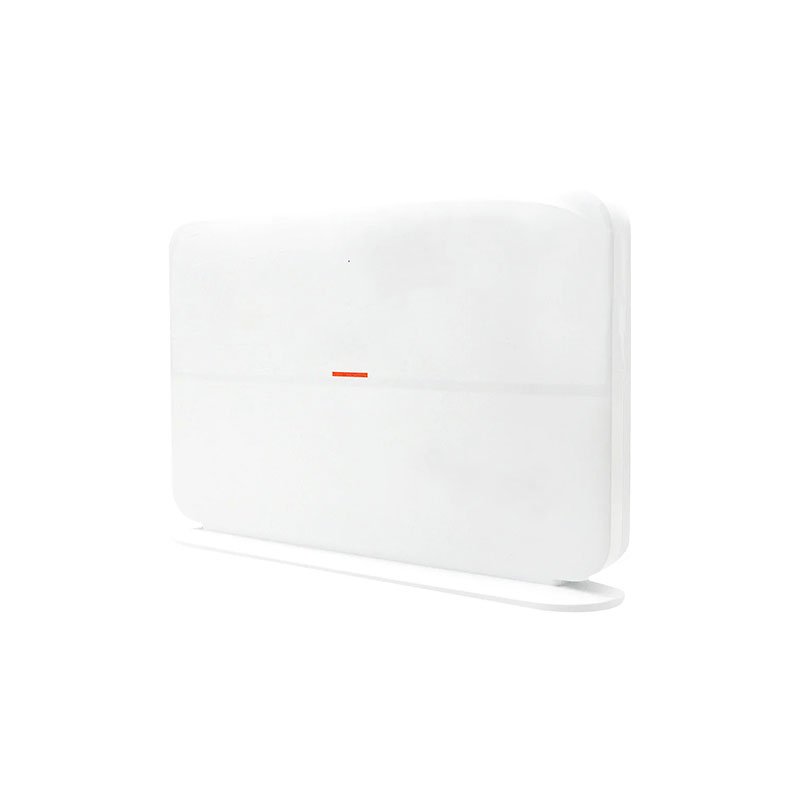

V173 WiFi 6 AX3000 XGPON ONT

V173 is the main FTTR of FTTR All-Optical Home Starlight F30 Premium Edition, which enables ultra-broadband access for users through XG-PON or asymmetric 10G EPON technology.

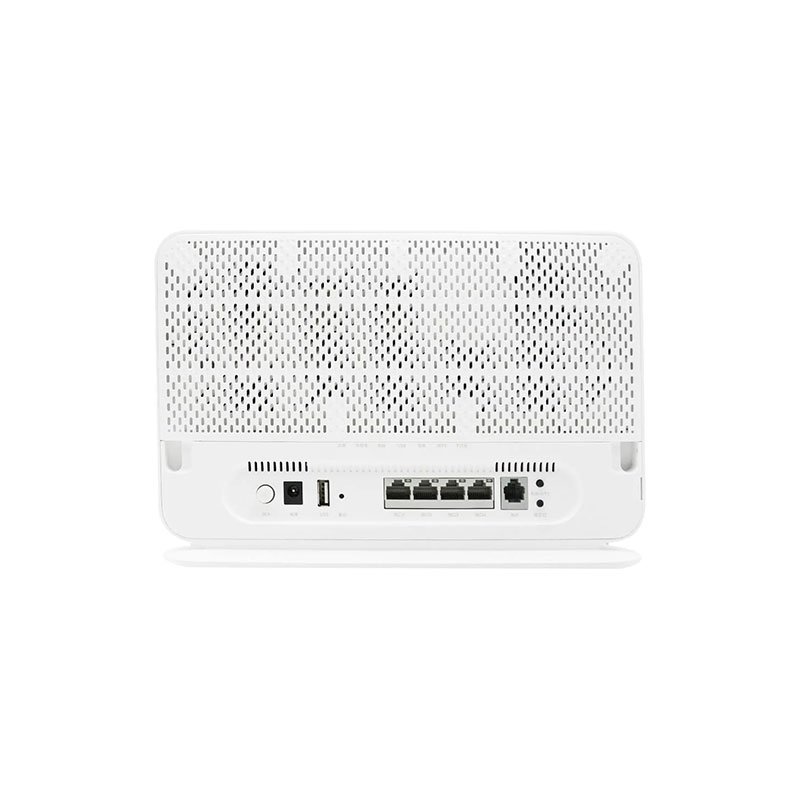

Interfaces: 4*GE+1*POTS+1*USB2.0+Wi-Fi 6

Category:

Description

Experience Next-Level Connectivity with V173

The V173 XG-PON Asymmetric 10G GPON WiFi 6 routing-type ONT is your gateway to ultra-fast internet and seamless home connectivity. Designed to meet modern demands, the V173 pairs with the slave ONT K153 to deliver the innovative Fiber to the Room (FTTR) solution. This dynamic duo ensures optimized bandwidth distribution, ensuring every corner of your space enjoys uninterrupted high-speed internet.

Exceptional User-Side Features

Crafted with versatility and performance in mind, the V173 offers an extensive suite of interfaces to meet diverse user requirements:

  • 4 GE Ports: Flexible wired connections for consistent, high-speed data transfers.
  • 1 POTS Port: Reliable voice communication support for streamlined telephony.
  • USB 2.0 Interface: Perfect for media sharing, backups, and peripheral connectivity.

Revolutionary FTTR Technology

With the V173, the future of connected homes is here. The Fiber to the Room solution, powered by pairing with K153, guarantees premium network stability. Say goodbye to dead zones and hello to uninterrupted browsing, streaming, and smart device management. Ideal for smart homes, offices, and high-demand environments, the FTTR solution adapts to your needs effortlessly.

Why Choose V173?

Whether you’re setting up a complex home network or require high-speed connections for business, the V173 is engineered for excellence. Harnessing XG-PON Asymmetric 10G GPON technology with WiFi 6 capabilities, this ONT redefines what’s possible in internet performance.

Upgrade to V173 and experience connectivity that meets the demands of the future, today.

PONXGPON
Ports4*GE+1*POTS+1*USB2.0+1*downlink optical port+2.4GHz&5GHz Wi-Fi

Usage scenarios

FTTR

XG-PON Interface

• XG-PON: Class N1/N2a
• Receive sensitivity: -28dBm
• Wavelength: 1260-1280nm for upstream and 1575-1580nm for downstream
• Support band rejection filter (WBF)
• Flexible mapping between GEM Port and TCONT
• Authentication method: SN/Password/SN + Password/bidirectional authentication based on OMCI
• Support upstream and downstream FEC (Forward Error Correction)
• Support DBA for SR and NSR
• Upstream and downstream rates: 2.488Gbit/s for upstream and 9.953Gbit/s for downstream

Wi-Fi

• IEEE 802.11 b/g/n/ax(2.4GHz)
• IEEE 802.11 a/n/ac/ax(5GHz)
• 2×2 MIMO (2.4GHz&5GHz)
• WMM(Wi-Fi Multi Media)
• 1024 QAM
• 160MHz bandwidth
• WPA3/WPA2/WPA1
• Multiple SSIDs
• WPS
• MU-MIMO
• Air interface rate: 574 Mbps (2.4GHz), 2402 Mbps (5GHz)

Ethernet port• VLAN Tag/Tag stripping based on Ethernet port
• 1:1 VLAN/N:1 VLAN/VLAN transparent transmission
• QinQ VLAN
• MAC address restriction
• MAC address learning
• Support 10/100/1000Mbps adaptive
Downstream optical interface• P2MP optical interface
• Plug and play from FTTR
USB port• USB 2.0
Telephone port• Maximum number of ports connected to phones: 4
• G.711A/u, G.729a/b, G.722 codecs
• Support T.30/T.38/G.711 fax
• DTMF
• Emergency call (SIP protocol)
FunctionWork as the main FTTR to realize the full optical home
O&MOMCI/OAM/Web UI/TR069
Variable length OMCI
Dimensions157mm x 250mm x 30mm (without base)
(length x width x height)
WeightAbout 600g
Working environmentOperating temperature: 0°C ~ +40°C
Environment humidity: 5% to 95% (noncondensing)
Storage256MB Flash，512MB RAM
Max. power consumption20 W
Power specificationsPower adapter input: 170~240V AC, 50/60Hz
System power supply: 12V DC, 2 A
