Description
Compact and Versatile Performance

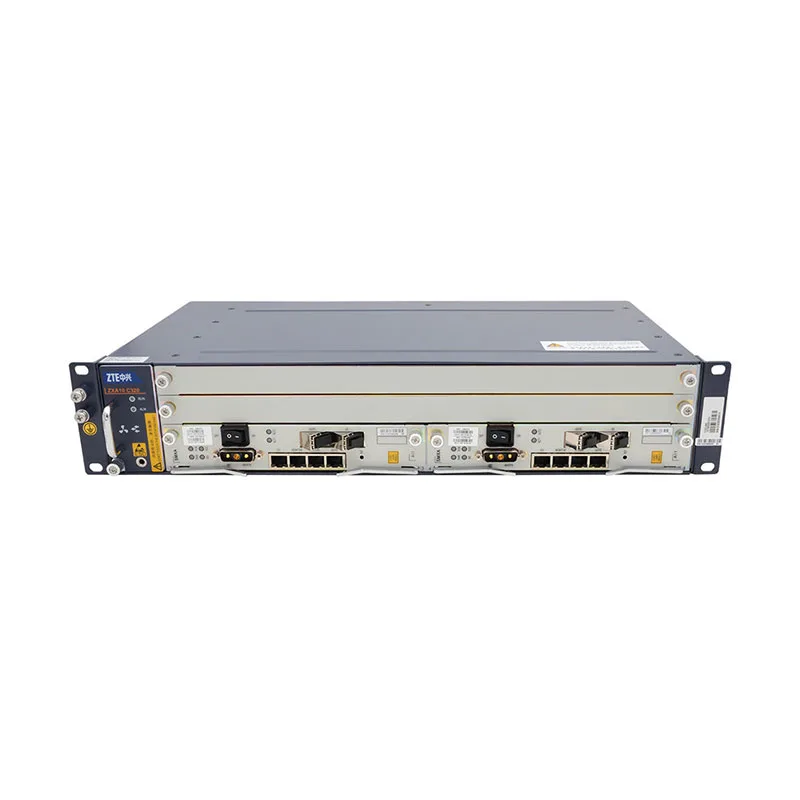

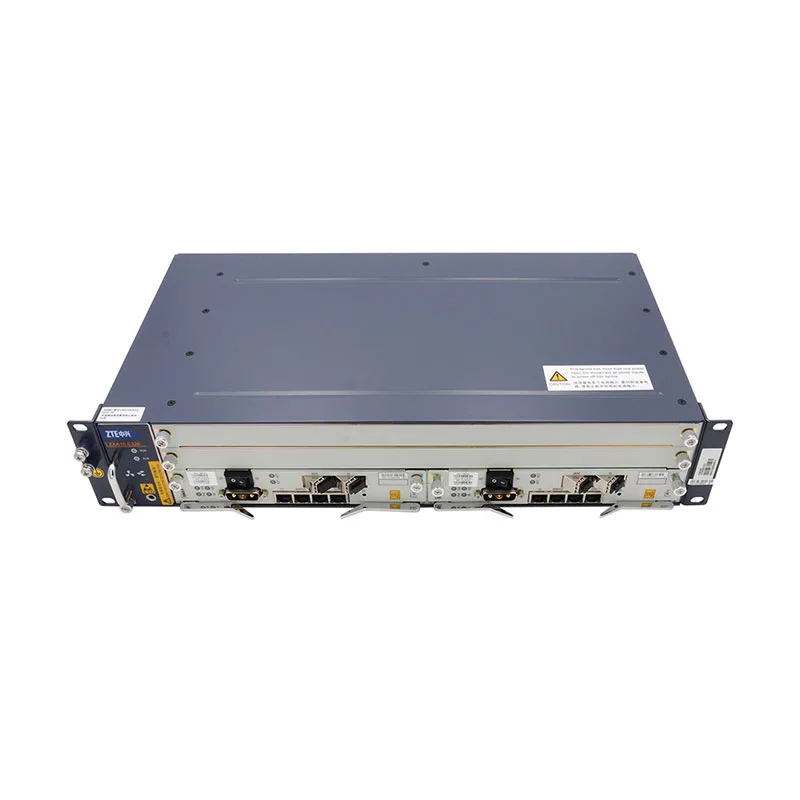

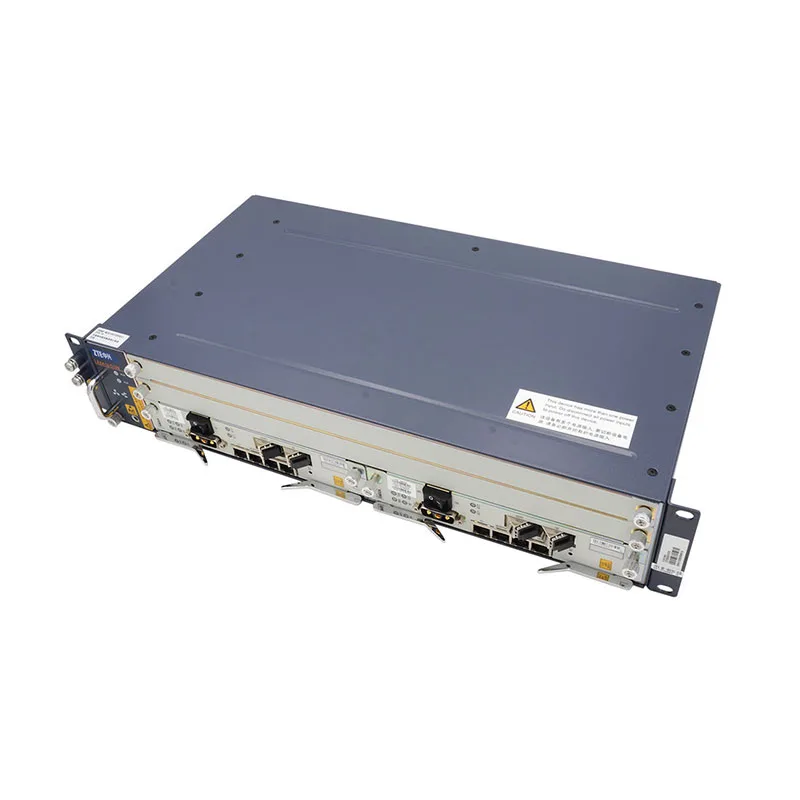

The ZXA10 C320 OLT is designed for next-generation optical access networks. This compact, dense platform delivers high-performance access services, supporting a variety of protocols including GPON, EPON, and XG-PON.
Comprehensive Service Support
With a robust architecture, the ZXA10 C320 enables high-speed internet (HSI), voice over IP (VoIP), IPTV, and CATV services. Its multi-service capabilities ensure seamless integration across diverse applications, catering to mobile backhaul and Wi-Fi management needs.
Carrier-Class Quality
Engineered for reliability, the ZXA10 C320 prioritizes quality of service (QoS) and security. This full-service optical access platform guarantees robust management control, making it an ideal choice for service providers aiming to enhance customer satisfaction.
| Model | ZXA10 C320 |
| Backplane capacity | 420 Gbit/s |
| Switching capacity | 84 Gbit/s |
| Number of service cards | 2 (GPON/P2P/XG-PON1) |
| Number of combined control cards | 2 |
| Number of power supply cards | 1 |
| Number of uplink cards | 1 (10GE/GE/FE/E1/T1) |
| Maximum number of GPON subscribers | 4096 |
| Management Interfaces | CLI, SSH, SNMP, telnet |
| Power | -48 V (DC), 230V (AC) |
| Working temperature and humidity | -25°C – +55°C, 5% – 95% |
| Split Ratio | up to 1:128 |
| Range | 20-60 km |
| Maximum attenuation | SFP B+ 28 dB, SFP C+ 32 dB |
| Dynamic Bandwidth Allocation | NSR-DBA, SR-DBA |
| Support | FEC, AES128, SCB, OLS |
| Dimensions | 86.1 mm (height) x 482.6 mm (width) x 270 mm (depth) |
| Power Supply | Dual DC: 48V/60VAC: 100V~240V |
| Cabinet | Indoor: 2200mm x 600mm x 300mm standard cabinet Outdoor: EC90EB, EC70E |
| Main-Control Switching Card SMXA | Panel interfaces: 1*10GE/GE(optical)+1*GE/FE(Optical)+ 1*GE/FE(electrical) +1*serial port+ 1*management FE+ 1*environment detecting port Ethernet uplink port: MAX. 2*10GE+4*GE or 6*GE |
| Service Card (2 slots) | GTGO(8*GPON) /GTGH(16*GPON)/FTGK(48*P2P)/GTXO(8*XG-PON) |
