Introduction to the CGHF Service Board

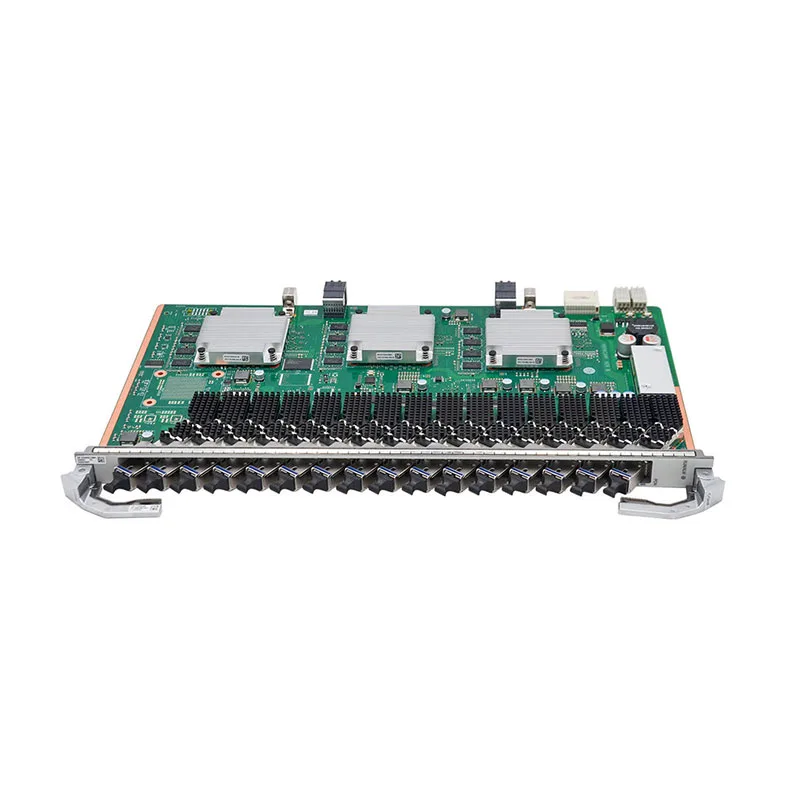

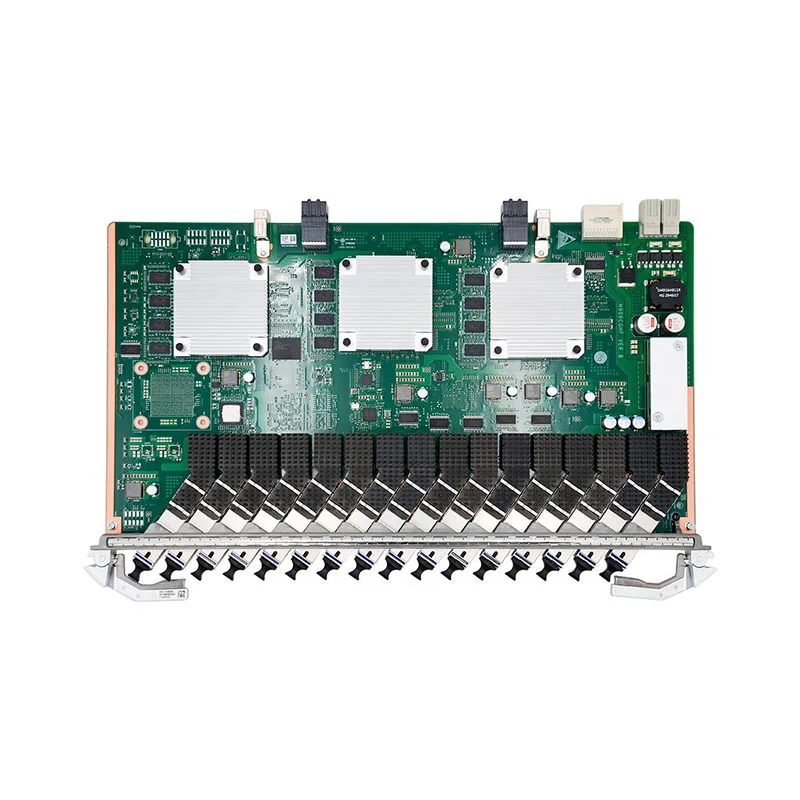

The Huawei CGHF service board is an advanced 16-port 10G GPON and GPON combo OLT interface designed to enhance your network capabilities. It supports multiple functionalities, making it a reliable option for various operational needs.
Key Features of the CGHF Service Board
This service board is equipped with a remarkable XG-PON interface, which facilitates high-speed data transmission. Its 16-port structure allows for extensive connectivity, ensuring you can manage multiple operations simultaneously without any hiccups in performance.
CGHF Service Board is 16-port 10G GPON and GPON combo OLT Interface Board with XGPON & GPON C+ Optical Module. This board is applied to MA5800 X2, X7, X15, X17 NG OLT system.
| Model | CGHF |
| GPON Port | 16 XG-PON & GPON ports |
| Type | One-fiber bi-directional optical module |
| Operating Wavelength | GPON channel: |
| Tx: 1490 nm | |
| Rx: 1310 nm | |
| XG-PON channel: | |
| Tx: 1577 nm | |
| Rx: 1270 nm | |
| Encapsulation Type | SFP+ |
| Port Rate | GPON channel: |
| Tx: 2.488 Gbit/s | |
| Rx: 1.244 Gbit/s | |
| XG-PON channel: | |
| Tx: 9.953 Gbit/s | |
| Rx: 2.488 Gbit/s | |
| Minimum Output Optical Power | GPON channel: 3 dBm |
| XG-PON channel: 4 dBm | |
| Maximum Output Optical Power | GPON channel: 7 dBm |
| XG-PON channel: 8 dBm | |
| Maximum Receiver Sensitivity | GPON channel: -32 dBm |
| XG-PON channel: -29.5 dBm | |
| Optical Connector Type | SC |
| Optical Fiber Type | Single-mode |
| Overload Optical Power | GPON channel: -12 dBm |
| XG-PON channel: -9 dBm | |
| Extinction Ratio | 8.2 dB |
| Forwarding capability | 200 Gbit/s |
| Rate mode | Asymmetric rate |
| T-CONTs per PON port | GPON: 1024 |
| XG-PON: 2048 | |
| Service flows per PON board | 16352 |
| Maximum frame size | 2052 bytes |
| 9216 bytes (jumbo frame enabled) | |
| Maximum number of MAC addresses | 131072 |
| Maximum distance difference between | 40 km |
| two ONUs under the same PON port | |
| Dimensions (W x D x H) | 23.30 mm * 257.90 mm * 399.20 mm |
| Power Consumption | Static: 48 W |
| Maximum: 106 W | |
| Operating temperature | -40°C to +65°C |
