Description
Superior Dual-Band Performance

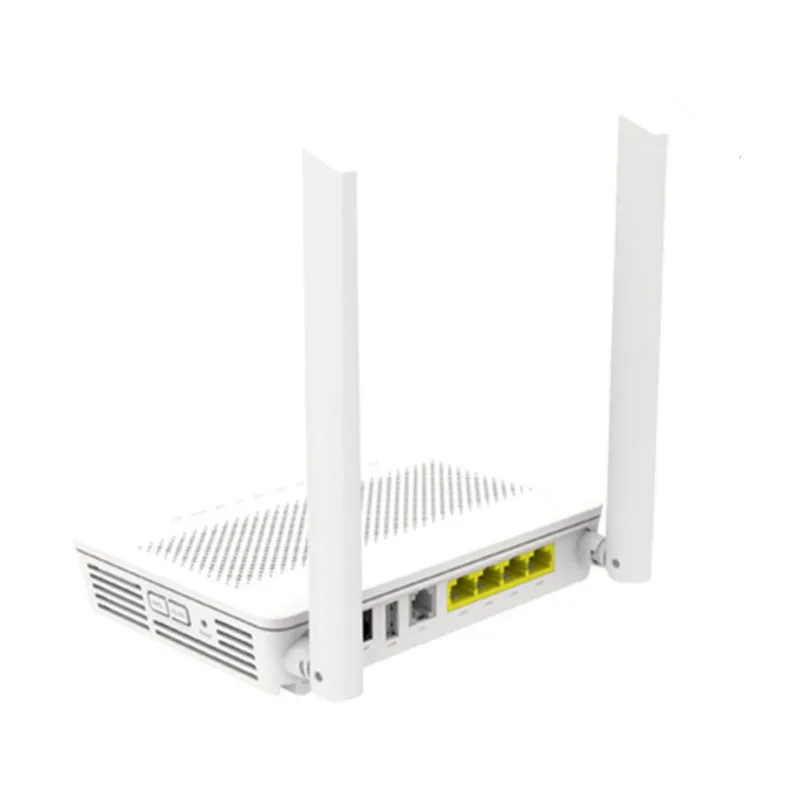

The EG8145V5 Dual Band ONU is designed to deliver exceptional internet access for both residential and small commercial environments. Its dual-band Wi-Fi functionality enables expansive coverage and superior performance across 2.4GHz and 5GHz frequency bands, ensuring every user enjoys a seamless online experience.
Advanced Connectivity Options
This ONU is equipped with multiple gigabit Ethernet ports, allowing for smooth and stable wired connections with a variety of devices, including PCs, gaming consoles, and televisions. Enjoy remarkable data transfer rates tailored to meet modern connectivity needs.
Enhanced Features for Today’s Users
In addition to reliable performance, the EG8145V5 incorporates cutting-edge features like VoIP telephony, making it an invaluable asset for contemporary networking demands. Its user-friendly interface simplifies setup and management, making it an ideal choice for all your networking requirements.
Main features – EG8145V5 GPON ONT terminal
- Terminal GPON ONT class B+
- Fiber optic connector port GPON SC/ UPC
- 4 RJ-45 10/100/1000 Mbps Gigabit Ethernet LAN ports
- 2 x USB
- 1 POTS phone port (1x POTS RJ11)
- Dual-band 2.4 GHz and 5 GHz AC Wi-Fi transmission
- Supports modern ac standard and 2×2 mimo dualchain technology
- Maximum theoretical throughput is up to 300 Mbps in the 2.4 GHz band and 867 Mbps in the 5 GHz band
Technical items | Descriptions |
Fiber port | 1 GPON interface, 4GE+1POTS+1USB+2.4G/5G WIFI,SC single-mode |
Wavelength | Tx 1310nm, Rx 1490nm |
Fiber interface | SC/UPC OR SC/APC |
RX sensitivity | <-27dBm (1490nm) |
WLAN | IEEE802.11b/g/n,2*2 MIMO, 2.4G/5G,2*External antenna 5dbm |
LAN | 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface |
Throughput | Downstream 950Mbps,Upstream 930Mbps |
ONT Detection and Isolation of Active/Passive Hooligans | YES |
L2 forwarding capability | 200 Mbit/s downstream (with any length packets) 200 Mbit/s upstream (with any length packets) |
IPv4 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction 1Gbit/s with any length packets in upstream direction |
IPv6 L3 forwarding capability | 2Gbit/s with any length packets in downstream direction 1Gbit/s with any length packets in upstream direction |
Configuration method | NMS, Web, or TR069 |
Voice protocol | SIP, H.248 |
DC power | Adapter input: 100-240 V AC, 50 – 60 Hz ; Adapter output: 11 – 14 V DC, 1.5A |
Button | Reset, power |
Power | ≤12W |
Operation | Working temperature: -0-+40ºC working humidity:5-95%(non-condensation) |
Dimension | 370*175*115mm(length*width*height) |
Net weight | ≤0.5Kg |
