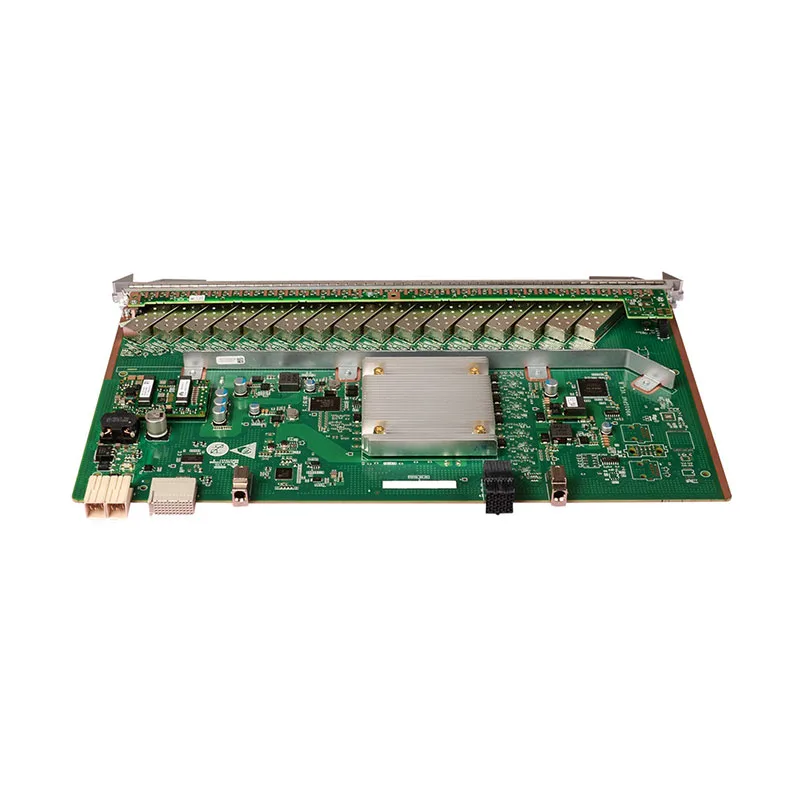

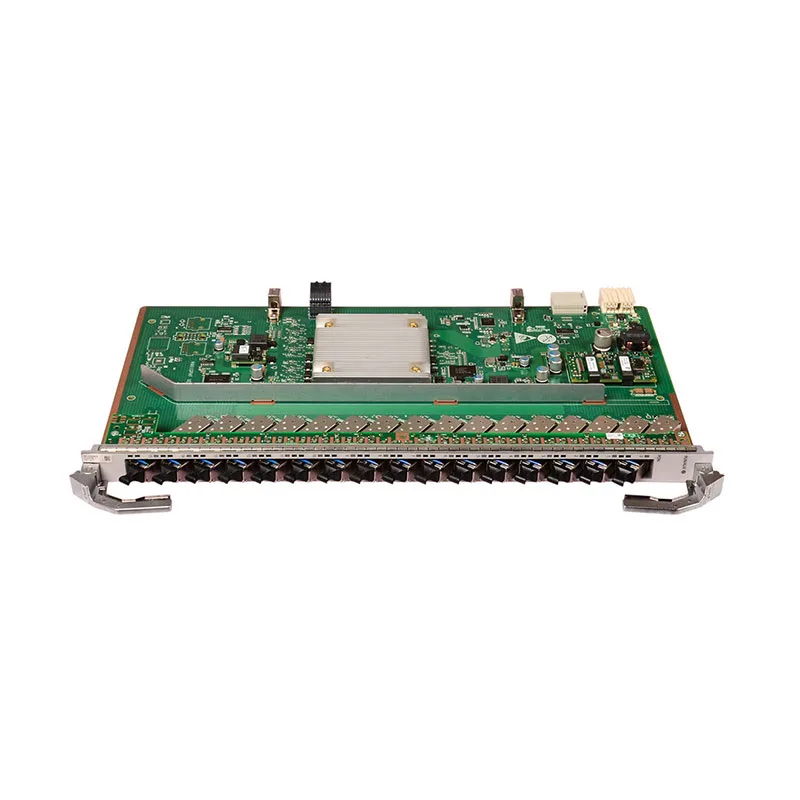

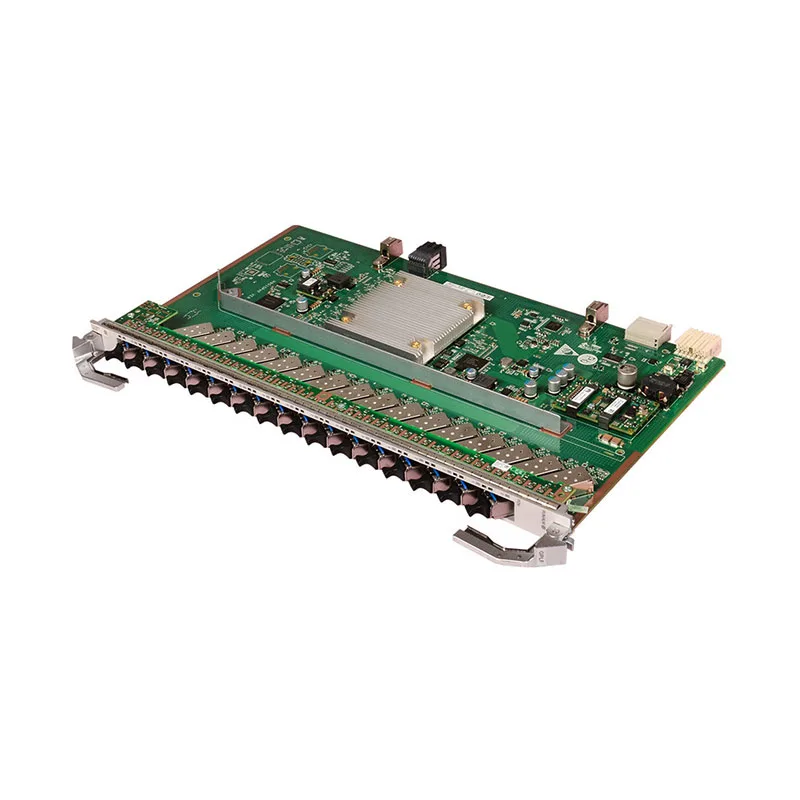

GPLF 16 Ports GPON Board H901 MA5800 OLT

GPLF Service Board is a 16-port GPON interface board for MA5800-X2 MA5800-X7 MA5800-X15 MA5800-X17 OLT. This board cooperates with an ONU (Optical Network Unit) device to implement GPON service access.

Category:

Description

Introduction to the GPLF Service Board

The GPLF service board is an advanced 16-port GPON interface board tailored for the Huawei MA5800 series. It plays a vital role in providing integrated broadband and narrowband access solutions.

High-Performance Access Solutions

  • High density, low power consumption, support 2048 access users.
  • Idle PON port manual shutdown, to avoid power waste
  • Support the same PON mouth two ONU to PON port maximum distance difference of 40km, simplifying network planning
  • Level 4 HQoS to improve the user experience.
  • 9216 Jumbo frame, greatly improving the transmission efficiency.
  • Real-time rogue ONU detection and isolation, to ensure stable operation of the business
  • Can become OMCI, improve the efficiency of upgrading, shorten the business interruption
  • 1:64 eOTDR, accurate fault sharing and quick fault location.

Future-Proof Your Network

In the era of 4K content consumption, MA5800-X7 ensures 100Mbps non-blocking access per user. With its incredible capacity to handle large volumes of data through ultra-broadband technologies, your network is prepared for all future demands.

Board NameGPLF
Port No.16 GPON SFP ports
Split RatioA maximum of 1:128 split ratio
SFPClass B+/C+/C++ one-fiber bi-directional optical modules
Traffic-ShapingONU-based traffic shaping
TemperatureTemperature reading and high-temperature alarm
Board ProtectionAutomatic power-off in case of high temperature
FECUpstream and downstream forward error correction (FEC)
NetworkingL3VPN and D-CCAP networking
ONURogue ONU detection
CCAPL3VPN and D-CCAP networking
RSSReceived signal strength indicator (RSSI) detection and optical signal transmission control of the optical module
