Description
Your Gateway to Ultra-Fast Fiber Connectivity

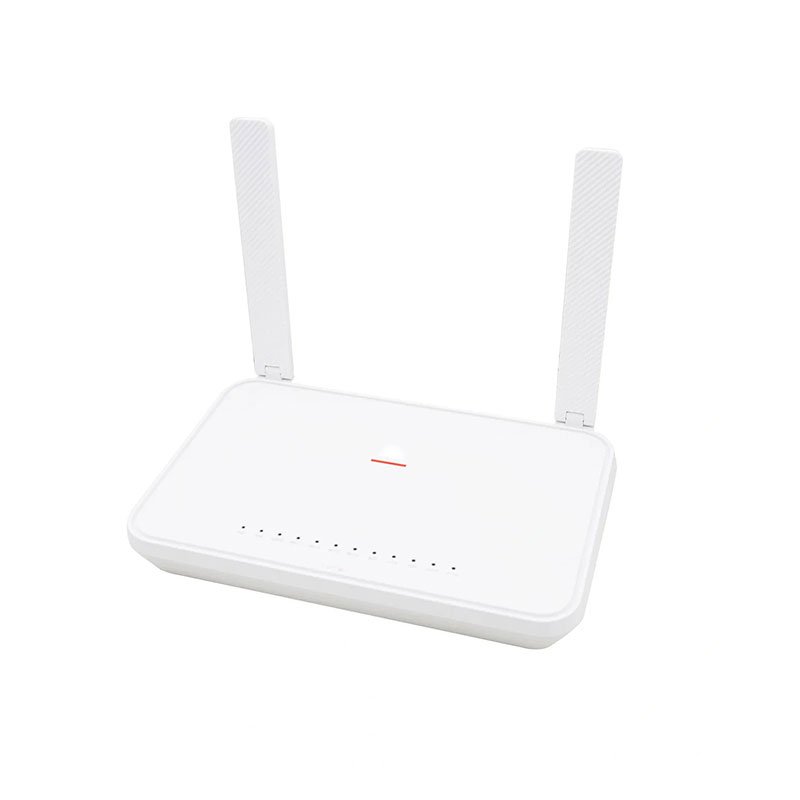

Introducing the HN8145XR, an innovative XG-PON Asymmetric 10G GPON WiFi 6 routing-type Optical Network Terminal (ONT) engineered to elevate your home networking experience. Paired with the robust K662d slave ONT, this solution is designed to deliver cutting-edge Fiber to the Room (FTTR) technology, transforming connectivity across every corner of your home. It utilizes optical fibers renowned for their small size, lightweight construction, ultra-long lifespan, anti-EMI capabilities, and potential for unlimited bandwidth evolution. FTTR not only eradicates the last-meter coverage problem but also caters to the growing demands of high-performance home networks.
Seamless Wi-Fi Roaming for Always-On Connectivity
Say goodbye to interruptions! With the HN8145XR and K662d, users can enjoy seamless Wi-Fi roaming throughout their homes. No connection drops as you move between rooms, upstairs, or downstairs, thanks to imperceptible handover technology. Stay connected without interruptions whether you’re switching between spaces or multitasking on multiple devices.
Empowered by Intelligent Management
Stay in control of your home network with the user-friendly mobile app. The HN8145XR offers real-time monitoring of network status while enabling one-click diagnosis and remote recovery. This intelligent management system simplifies troubleshooting, ensuring a smooth and hassle-free internet experience for every household member.
Key hardware specifications include the master FTTR ONT HN8145XR equipped with 4GE, 1 USB, 1 POTS, 2.4G/5G WiFi6, featuring 5dBi antennas, paired with the slave FTTR ONT K662d offering 2GE, 2.4G/5G WiFi6 functionality, also with 5dBi antennas. Together, they form a powerhouse duo capable of delivering cutting-edge features and robust performance for modern home networking needs.
| PON | XGPON; (SC/UPC) |

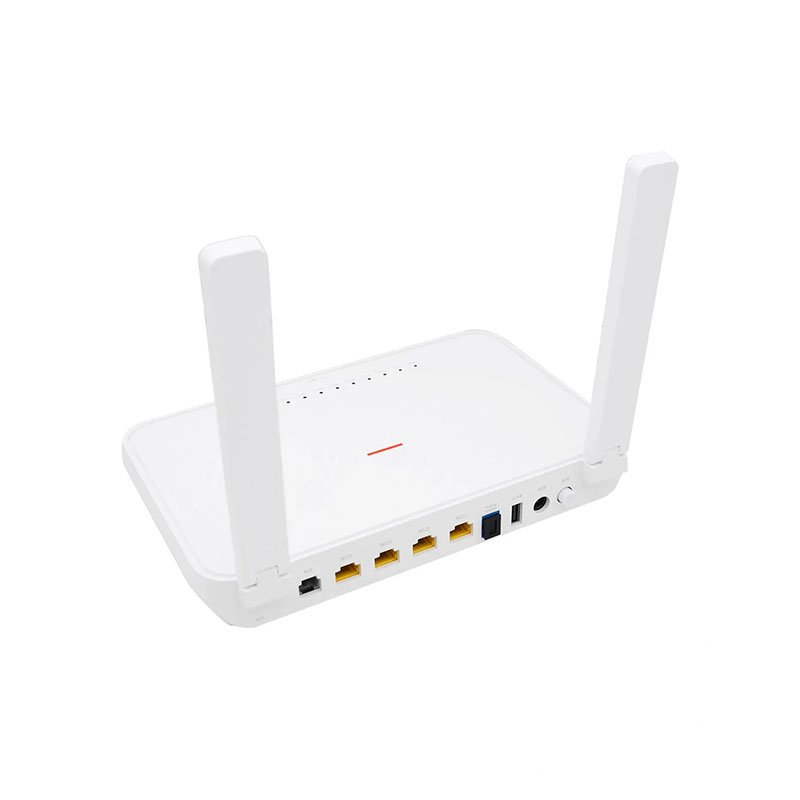

| Ports | 4GE+1TEL+2USB+2.4/5G WIFI 6 (SC/UPC) |
Usage scenarios | FTTR |
XG-PON | Class N1/N2a |
| WLAN | 2×2 MIMO（2.4G&5G） |
| IEEE 802.11 ax (2.4G&5G) | |
| WMM(Wi-Fi Multi Media) | |
| Antenna gain: 5 dBi | |
| Air interface rate: 574 Mbps (2.4GHz)，2402 Mbps (5GHz) | |
| Function | Work as the main FTTR to realize the full optical home |
| O&M | OMCI/OAM/Web UI/TR069 Variable length OMCI |
| Dimensions | 240mm x 151mm x 40mm |
| (length x width x height) | |
| Weight | About 400 g |
| Working environment | Operating temperature: 0ºC to 40ºC |
| Environment humidity: 5% to 95% (noncondensing) | |
| Storage | 256MB Flash，512MB RAM |
| Max. power consumption | 20 W |
| Power specifications | Power adapter input: 170 ～ 240 V AC，50/60 Hz |
| System power supply: 12V DC, 2 A |
